Preparing your lawn tractor for the spring season often starts not with an oil check, but with an unpleasant surprise in the shed. We recently received an email at news-jd.com from our reader, Keith, who faced a classic “winter storage” headache.
His John Deere X350 mower had a completely flat front tire over the winter, and under the weight of the machine, the tire popped off the rim (unbeaded). What should you do if your tractor is stuck in a cramped shed? Let’s break it down step-by-step.
Why You Should Never Roll a Tractor on a Flat Rim

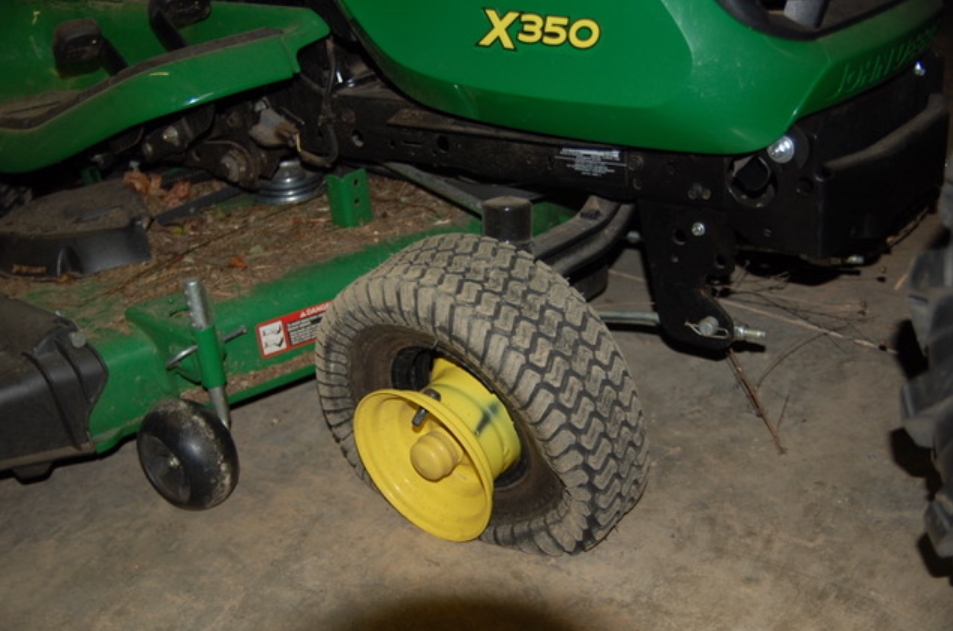

As seen in Keith’s photo, the metal rim is almost touching the floor. Attempting to roll a tractor weighing over 500 lbs (230 kg) in this condition is a sure way to cause expensive damage:
- Spindle Damage: The front axle spindle can bend under the uneven weight.
- Rim Deforming: The edge of the John Deere yellow rim can easily dent or warp against concrete.
- Valve Stem Shear: As the rim spins inside the loose rubber, it will instantly shear off the air valve.
Expert Tip: If the tire is “unbeaded,” forget about towing it. You must restore the support right where it sits.
How to Lift Your John Deere X350 in Tight Spaces
Since sheds are usually too cramped for a large floor jack, use a small automotive “scissor” jack or a bottle jack.

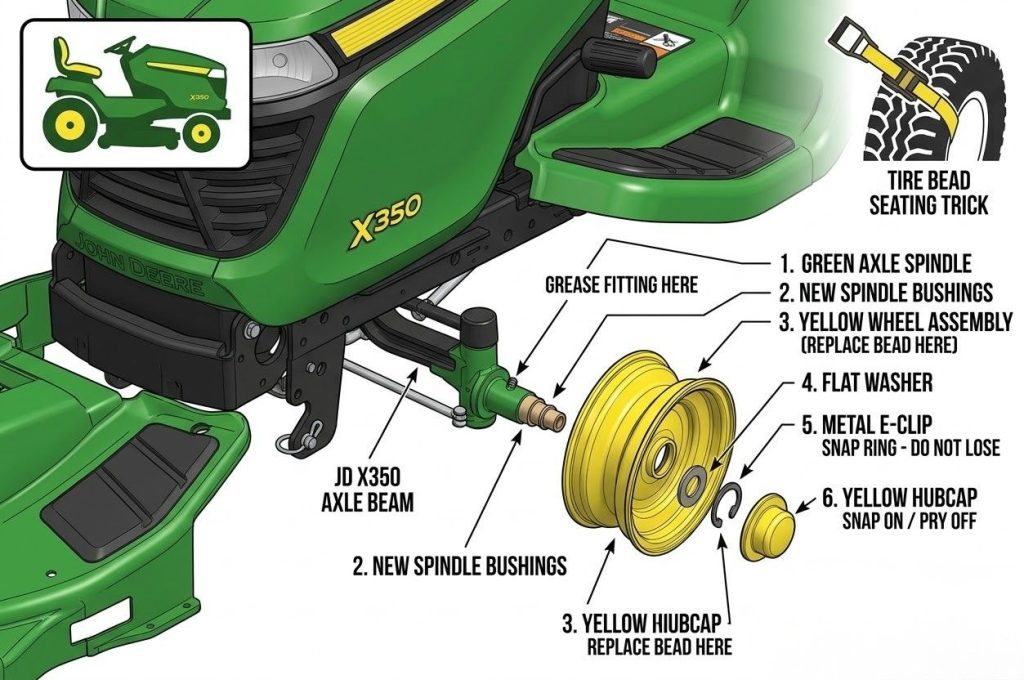

- Jack Point: Place the jack directly under the cast-iron front axle beam, as close to the damaged wheel as possible.
- Safety First: Always place a wooden block or jack stand under the frame. Never work on a tractor supported only by hydraulics.
- Removal: Pop off the yellow plastic hubcap, then use a flathead screwdriver to remove the E-clip and the steel washer. Now, the wheel can be slid off the axle.

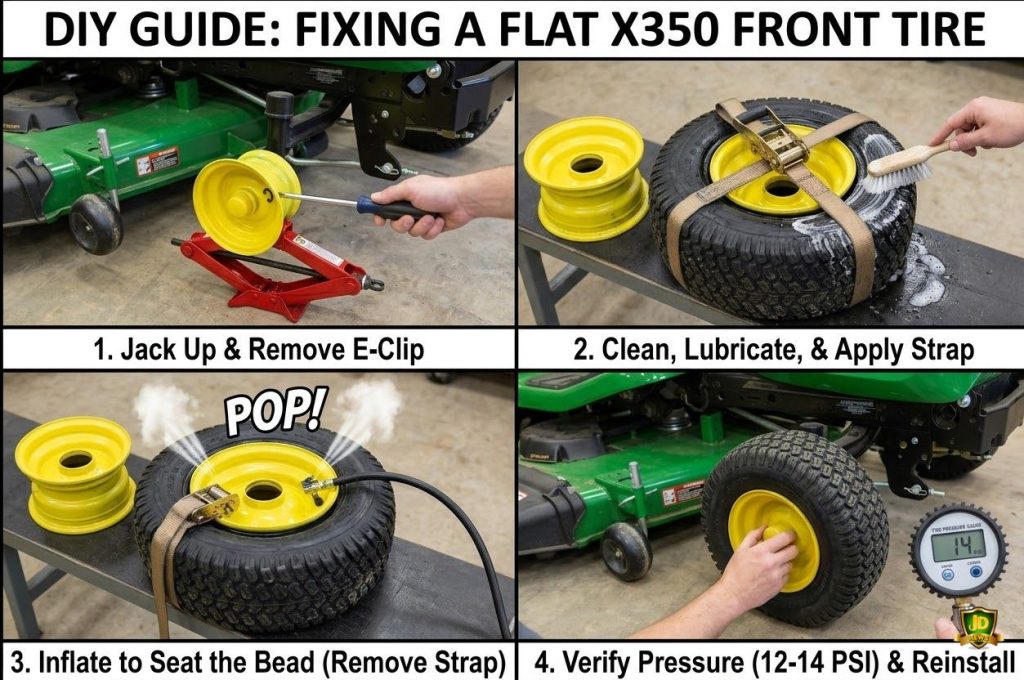

The “Ratchet Strap Trick” to Reseat the Bead
A standard pump won’t work if the bead has moved to the center of the rim because air escapes through the gaps. You will need an air compressor and a ratcheting tie-down strap.
Instructions:
- Clean: Wipe the inner rim surface to remove rust and dirt.
- Lubricate: Liberally apply soapy water to the edges of the tire. This creates a temporary seal.
- The Strap Trick: Wrap the ratchet strap around the center of the tire tread and tighten. This forces the sidewalls outward against the rim edges.
- Inflate: Apply air. Once the bead “pops” into place, immediately release the strap.
John Deere X300 Series Technical Specs
| Parameter | Value for Front Wheels |
|---|---|
| Optimal Pressure | 12 – 14 psi (0.8 – 1.0 bar) |
| Fastener Type | 3/4″ E-clip (Snap ring) |
| Recommended Grease | John Deere Multi-Purpose SD Polyurea |
Prevention: How to Avoid This Next Year
- Install a Tube: For older tires with cracks, installing an inner tube is the most reliable solution.
- Winter Storage: Over-inflate the tires slightly before winter (up to 18 psi).
- Weight Off: Place blocks under the front axle to keep the tires from deforming under the engine’s weight.
Good luck with the repair, Keith! We hope your X350 is back on the lawn soon.
Need spare parts? Use these OEM numbers:
M123253 — Front Axle E-clip
M143338 — Hubcap
Have questions about X300 maintenance? Send us an email at info@news-jd.com — we are always happy to help!
